SKU: BLFN

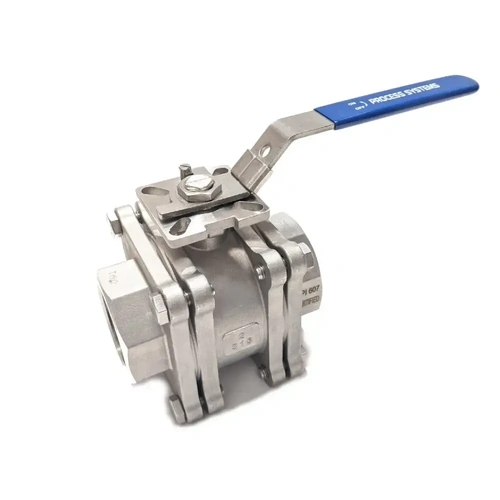

Stainless Steel NPT Threaded Fire Safe Ball Valve

From $101.20

Inc GST
In Stock
Make an Enquiry
  • Fire Safe Approved 2 way 3 piece ball valve
  • NPT Threaded Ends
  • Lockable Lever
  • ISO5211 mounting pad, length to DIN 3202-M3
Model Size (BSP) Size (mm) Media Pressure Media Temperature Torque (NM)
BLF4N-L-T 1/2 15 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 5
BLF5N-L-T 3/4 20 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 8
BLF6N-L-T 1 25 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 10
BLF7N-L-T 1 ¼ 32 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 14
BLF8N-L-T 1 ½ 40 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 18
BLF9N-L-T 2 50 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 25
BLF10N-L-T 2 ½ 65 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 48
BLF11N-L-T 3 80 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 75
BLF12N-L-T 4 100 Vacuum (29" Hg) to 125 Bar (2000 psi) -20°C to 180°C 110

Stainless Steel Fire Safe Threaded Ball Valve 2000psi

Size d L H h W C ISO5211 Kg
1/2" 15 75 70 42 117 9 F03/F04 0.6
3/4" 20 80 78 50 134 11 F04/F05 1.06
1" 25 90 87 58 134 11 F04/F05 1.41
1 ¼" 32 110 98 64 203 14 F05/F07 2.32
1 ½" 40 120 104 69.5 203 14 F05/F07 3.26
2" 50 140 112 78 203 14 F05/F07 4.13
2 ½" 65 185 140 100 255 17 F07/F10 8.58
3" 80 205 153 112.5 255 17 F07/F10 13.3
4" 100 240 166 125.5 302 17 F07/F10 22.3

All dimensions in mm unless shown otherwise.

Stainless Steel Fire Safe Threaded Ball Valve 2000psi

Item Part Material Qty
1 Cap CF8M 1
2 Body CF8M 1
3 Ball SS316 1
4 Ball Seat Pure PTFE 2
5A Body Gasket A Pure Graphite 1
5B Body Gasket B Pure Graphite 1
6 Thrust Washer Pure PTFE 1
7 Stem SS316 1
8 O-ring Viton 1
9A Stem Packing A Pure Graphite 1
Item Part Material Qty
9B Stem Packing B Pure Graphite 1
10 Gland SS304 1
11 Bellevlle Washer SS301 2
12 Nut Stopper SS304 1
13 Plate Washer SS304 1
14 Nut SS304 2
15 Handle SS304 1
16 Bolt SS304 4
17 Handle Cover Plastic 1
18 Stop Pin SS304 1



Size 1/2" to 4" NPT
Body 316 Stainless Steel
Seat PTFE
Pressure 130 Bar
Temperature -20°C to 180°C
Actuation Lockable Lever
Fire Safe API607 Approved

.
.
