Features:
Size 11mm to 46mm
Body Cast Steel
Function Star drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV

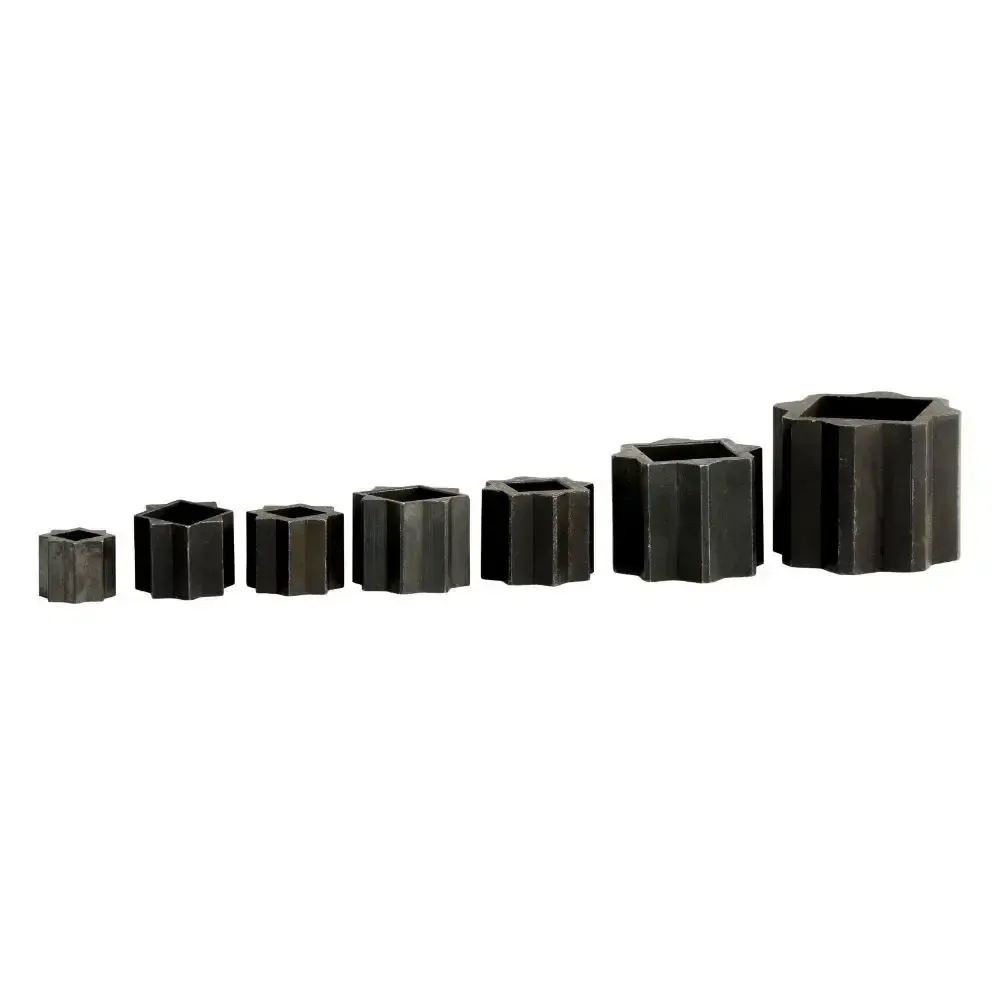

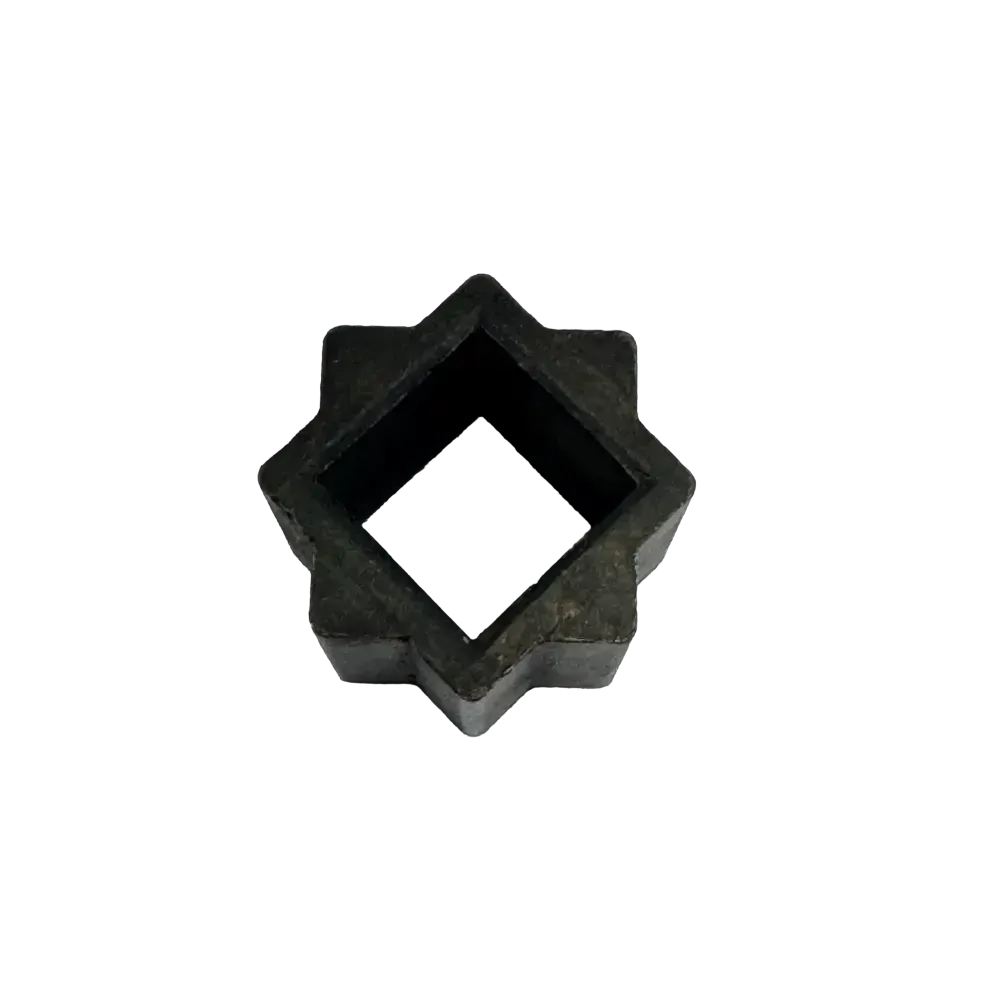

Star Drive Sleeves are used to adapt between the actuator star drive and the valve square drive. A star drive can be preferable to a square drive as it has more engagement on the female drive in the actuator.

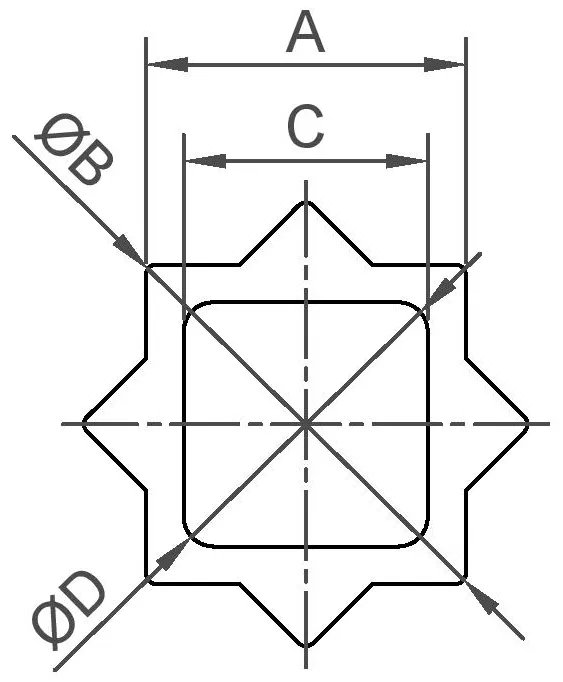

Model | A | ⌀B | C | ⌀D | Length |
---|---|---|---|---|---|
ST11-9STARDRIVE | 11 | 14.9 | 9 | 12.5 | 13 |
ST14-9STARDRIVE | 14 | 18.2 | 9 | 12.5 | 16 |
ST14-11STARDRIVE | 14 | 18.2 | 11 | 15.2 | 16 |
ST17-9STARDRIVE | 17 | 22.2 | 9 | 12.5 | 19 |
ST17-11STARDRIVE | 17 | 22.2 | 11 | 15.2 | 19 |
ST17-14STARDRIVE | 17 | 22.2 | 14 | 19.2 | 19 |
ST19-11STARDRIVE | 19 | 25.2 | 11 | 15.2 | 21 |
ST19-14STARDRIVE | 19 | 25.2 | 14 | 19.2 | 21 |
ST19-17STARDRIVE | 19 | 25.2 | 17 | 23.2 | 21 |
ST22-14STARDRIVE | 22 | 28.2 | 14 | 19.2 | 24 |
ST22-17STARDRIVE | 22 | 28.2 | 17 | 23.2 | 24 |
ST22-19STARDRIVE | 22 | 28.2 | 19 | 26.2 | 24 |
ST27-17STARDRIVE | 27 | 36.2 | 17 | 23.2 | 29 |
ST27-22STARDRIVE | 27 | 36.2 | 22 | 29.2 | 29 |
ST36-19STARDRIVE | 36 | 48.2 | 19 | 26.2 | 38 |
ST36-22STARDRIVE | 36 | 48.2 | 22 | 29.2 | 38 |
ST36-27STARDRIVE | 36 | 48.2 | 27 | 37.2 | 38 |
ST46-27STARDRIVE | 46 | 60.2 | 27 | 37.2 | 48 |
ST46-36STARDRIVE | 46 | 60.2 | 36 | 49.2 | 48 |
