Features:
Sheet Size 1000mm x 1000mm
Thickness 1.5mm & 3.0mm
Temperature Limit -200°C ~ 450°C
Pressure 60 Bar
Application Steam & Most Chemicals

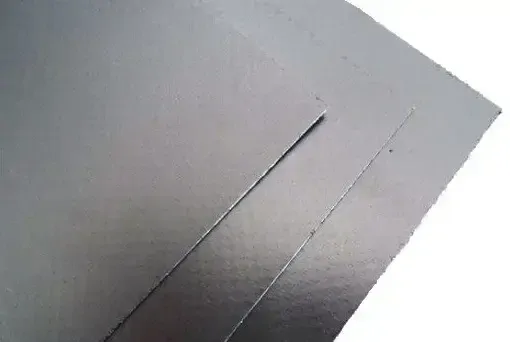

These sheets are made from flexible graphite laminated to tanged 316 stainless steel. They are ideal for high temperature applications and have excellent resistance to steam and most chemicals.
Item | Standard | Value |
---|---|---|
Max Pressure | 60 Bar | |
Ph Range | 0 to 14 | |
Temperature Range in Oxidizing Media | -200°C to 450°C | |
Temperature Range in Non Oxidizing Media | -200°C to 800°C | |
Stability Under Compressive Strength | DIN 52913 | >48 N/mm² |
Compressibility | ASTM F36A-66 | 30% to 40% |
Recovery | ASTM F36A-66 | 15% to 30% |
Gas Permeability | DN353 | <0.8 cm²/min |
Sealibility Nitrogen Gas | F-37B | 60 ml/hr |
Sealing Constants "m" factor | ASTM | 2.5 |
Sealing Constants "y" stress | ASTM | 4000psi |
