SKU: YPE

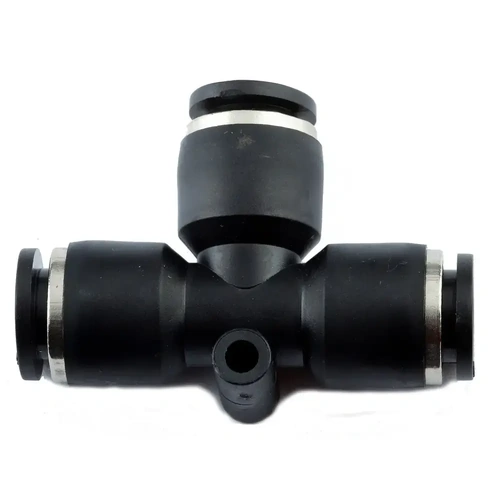

Tube Tee Connector Push Fit

From $1.98

Inc GST
In Stock
Make an Enquiry

This is a metric Tee joiner push fit fitting. Each end of the tee has a push fit connector/joiner. Simply push the tube in to seal and pull the collet down while pulling the tube out to release. Used to join three pieces of tube together.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Push fit to push fit ends

Push Fit Tee Connector

Model O.D Tube (øD) mm E B øP F ød
YPE04 4 17 35.5 10.5 5 3.2
YPE06 6 19 37.5 13 5.5 3.2
YPE08 8 22.5 45 14.4 6.5 3.2
YPE10 10 28 56 18.4 8 4.2
YPE12 12 31 60 20 8.5 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Function Tee Joiner Push Fit

Others Also Bought

YPE

Tube Tee Connector Push Fit

Features:

Tube Size 4mm to 12mm
Function Tee Joiner Push Fit

Description:

This is a metric Tee joiner push fit fitting. Each end of the tee has a push fit connector/joiner. Simply push the tube in to seal and pull the collet down while pulling the tube out to release. Used to join three pieces of tube together.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Push fit to push fit ends
.

Tube Tee Connector Push Fit

YPE

Dimensions:

Push Fit Tee Connector

Model O.D Tube (øD) mm E B øP F ød
YPE04 4 17 35.5 10.5 5 3.2
YPE06 6 19 37.5 13 5.5 3.2
YPE08 8 22.5 45 14.4 6.5 3.2
YPE10 10 28 56 18.4 8 4.2
YPE12 12 31 60 20 8.5 4.2

All dimensions in mm unless shown otherwise.
