Features:
Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Universal Female Elbow Push Fit

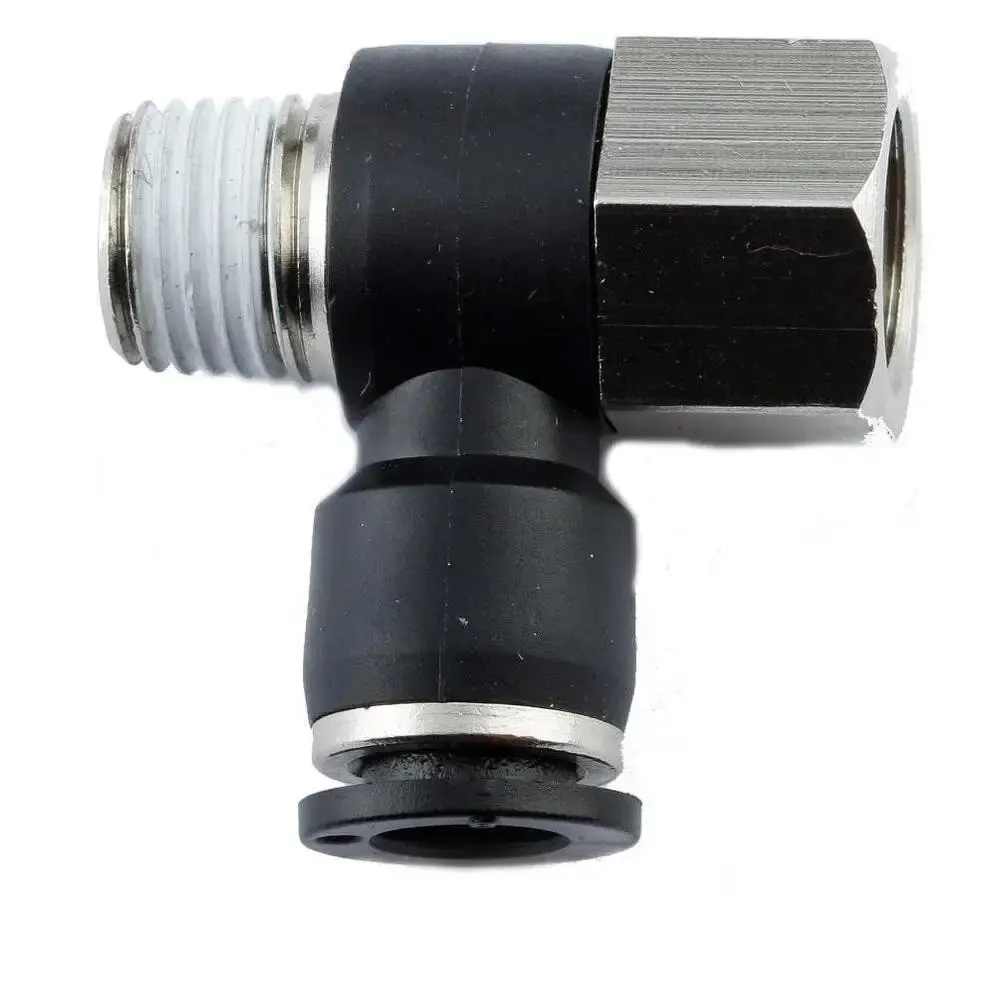

This unit has a female hex head fitting at one end of a thread with a push fit fitting on the other end of the elbow. Simply push the tube in to seal and then press down on the collet while pulling the tube to release.
Model | O.D Tube (øD) mm | Thread (R) BSPT | Thread (Rc) BSPP | E | B | øP | A1 | A2 | H | øK |
---|---|---|---|---|---|---|---|---|---|---|
YPHF04-M5 | 4 | M5 | M5 | 24 | 19 | 10.5 | 3.5 | 4 | 10 | 10 |
YPHF04-01 | 4 | 1/8” | 1/8” | 28 | 29.5 | 10.5 | 7 | 7 | 10 | 14 |
YPHF04-02 | 4 | 1/4” | 1/4” | 32 | 35.5 | 10.5 | 10 | 10 | 14 | 15 |
YPHF06-M5 | 6 | M5 | M5 | 28 | 19 | 13 | 3.5 | 4 | 12 | 10 |
YPHF06-01 | 6 | 1/8” | 1/8” | 32 | 29.5 | 13 | 7 | 7 | 12 | 14 |
YPHF06-02 | 6 | 1/4” | 1/4” | 36 | 35.5 | 13 | 10 | 10 | 14 | 18 |
YPHF06-03 | 6 | 3/8” | 3/8” | 40 | 41.5 | 13 | 11 | 11 | 17 | 22 |
YPHF06-04 | 6 | 1/2" | 1/2" | 45.5 | 48.5 | 13 | 13 | 13 | 21 | 27.5 |
YPHF08-01 | 8 | 1/8” | 1/8” | 32.5 | 29.5 | 14.4 | 7 | 7 | 14 | 14 |
YPHF08-02 | 8 | 1/4” | 1/4” | 36.5 | 35.5 | 14.4 | 10 | 10 | 14 | 18 |
YPHF08-03 | 8 | 3/8” | 3/8” | 40.5 | 41.5 | 14.4 | 11 | 11 | 17 | 22 |
YPHF08-04 | 8 | 1/2" | 1/2" | 46 | 48.5 | 14.4 | 13 | 13 | 21 | 27.5 |
YPHF10-01 | 10 | 1/8” | 1/8” | 34.5 | 29.5 | 18.4 | 7 | 7 | 17 | 14 |
YPHF10-02 | 10 | 1/4” | 1/4” | 38.5 | 35.5 | 18.4 | 10 | 10 | 17 | 18 |
YPHF10-03 | 10 | 3/8” | 3/8” | 42.5 | 41.5 | 18.4 | 11 | 11 | 17 | 22 |
YPHF10-04 | 10 | 1/2" | 1/2" | 48 | 48.5 | 18.4 | 13 | 13 | 21 | 27.5 |
YPHF12-02 | 12 | 1/4” | 1/4” | 41.5 | 35.5 | 20 | 10 | 10 | 19 | 18 |
YPHF12-03 | 12 | 3/8” | 3/8” | 45.5 | 41.5 | 20 | 11 | 11 | 19 | 22 |
YPHF12-04 | 12 | 1/2" | 1/2" | 51 | 48.5 | 20 | 13 | 13 | 21 | 27.5 |
All dimensions in mm unless shown otherwise.
