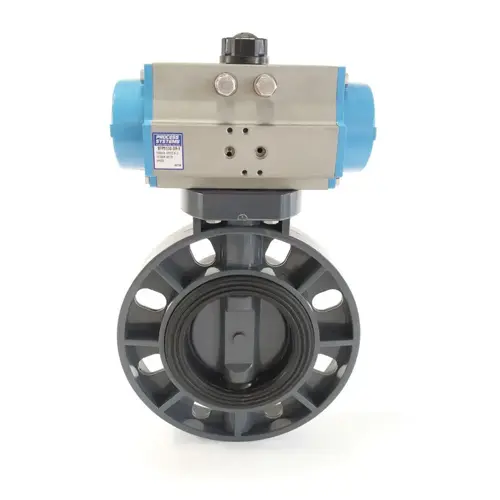

UPVC Double Acting Pneumatic Wafer Butterfly Valve

From $181.50

Inc GST
In Stock
Make an Enquiry
  • UV Stabalised Double Acting Pneumatic PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • Anodised Aluminium Double Acting Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFP50-DA-E 50 DA50 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP65-DA-E 65 DA50 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP80-DA-E 80 DA63 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP100-DA-E 100 DA63 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP125-DA-E 125 DA75 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP150-DA-E 150 DA88 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP200-DA-E 200 DA100 0 to 10 BAR Ambient 6 to 8 BAR 1/4"

*Change the E to a V for FKM.

Size Actuator H1 H C L n e D d A B H3 F
50mm DA50 79 99 123 45 4 20 54 25 138 70 90 71
65mm DA50 90 108 143 48 4 21 67 27 138 70 90 71
80mm DA63 96 126 157 52 4 21 83 24 162 81 101 80.4
100mm DA63 110 139 186 57 8 21 101 30 162 81 101 80.4
125mm DA75 127 169 213 65 8 24 127 28 208 97 117 94.5
150mm DA88 145 182 240 72 8 24 152 29 245 116 136 109
200mm DA100 172 225 296 90 8 24 200 30 266 122 142 123

All dimensions in mm unless shown otherwise

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM or FKM
Disc PVC
Pressure 10 BAR
Actuation Double Acting Pneumatic

BFPDA

UPVC Double Acting Pneumatic Wafer Butterfly Valve

Features:

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM or FKM
Disc PVC
Pressure 10 BAR
Actuation Double Acting Pneumatic

Description:

  • UV Stabalised Double Acting Pneumatic PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • Anodised Aluminium Double Acting Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFP50-DA-E 50 DA50 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP65-DA-E 65 DA50 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP80-DA-E 80 DA63 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP100-DA-E 100 DA63 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP125-DA-E 125 DA75 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP150-DA-E 150 DA88 0 to 10 BAR Ambient 6 to 8 BAR 1/8"
BFP200-DA-E 200 DA100 0 to 10 BAR Ambient 6 to 8 BAR 1/4"

*Change the E to a V for FKM.

.

UPVC Double Acting Pneumatic Wafer Butterfly Valve

BFPDA

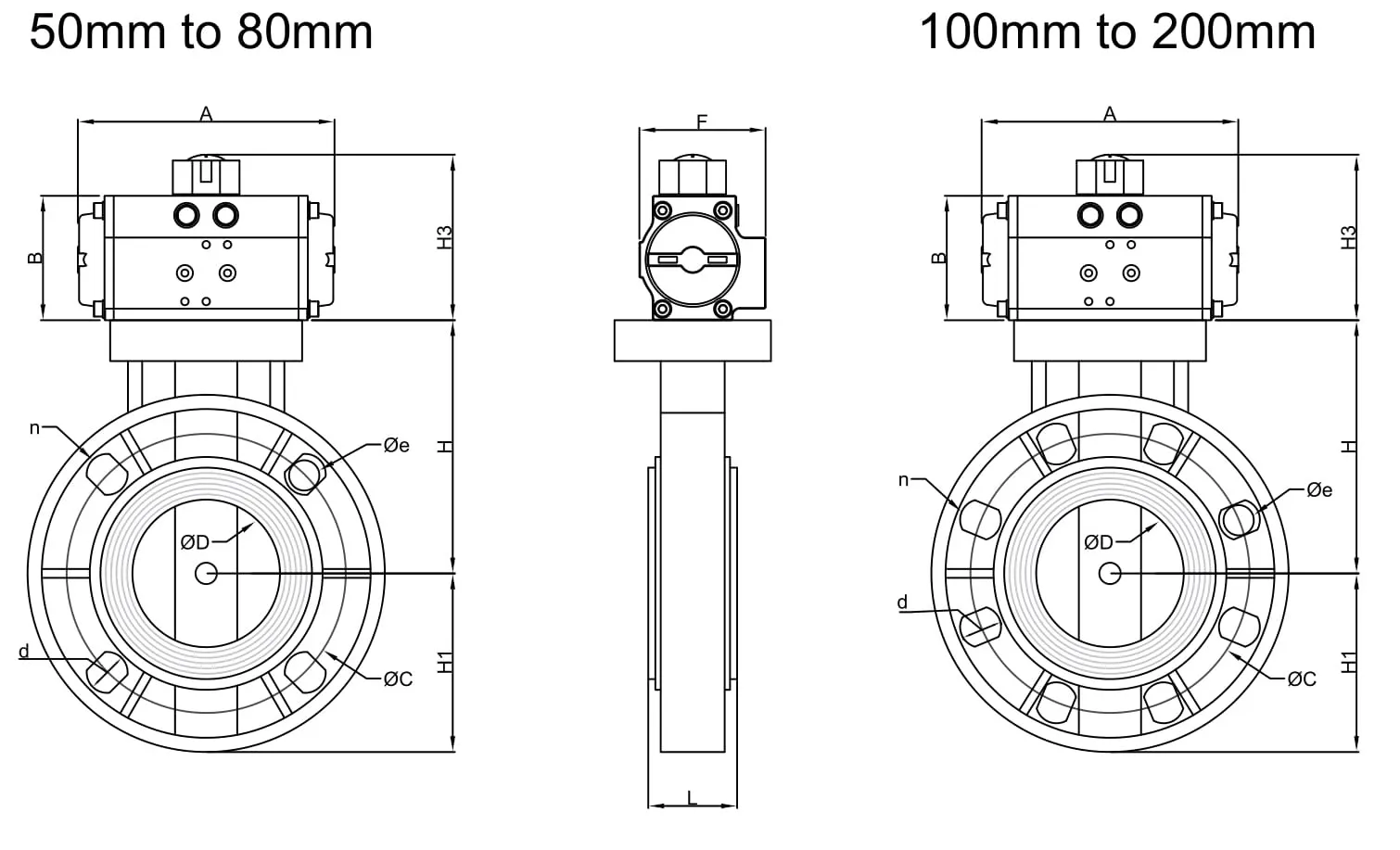

Dimensions:

Size Actuator H1 H C L n e D d A B H3 F
50mm DA50 79 99 123 45 4 20 54 25 138 70 90 71
65mm DA50 90 108 143 48 4 21 67 27 138 70 90 71
80mm DA63 96 126 157 52 4 21 83 24 162 81 101 80.4
100mm DA63 110 139 186 57 8 21 101 30 162 81 101 80.4
125mm DA75 127 169 213 65 8 24 127 28 208 97 117 94.5
150mm DA88 145 182 240 72 8 24 152 29 245 116 136 109
200mm DA100 172 225 296 90 8 24 200 30 266 122 142 123

All dimensions in mm unless shown otherwise
