SKU: BFPE

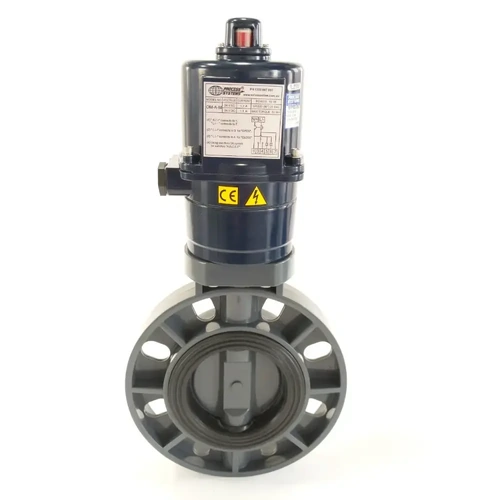

UPVC Electric Butterfly Valve

From $616.00

Inc GST
In Stock
Make an Enquiry
  • UV Stabalised Electric PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • IP67 Electric Actuator
  • Extra limit switches, manual override & visual indicator
Model Size (mm) Actuator Media Pressure Media Temperature
BFP50-E*-E 50 0M-1 0 to 10 BAR ambient
BFP65-E*-E 65 0M-1 0 to 10 BAR ambient
BFP80-E*-E 80 0M-1 0 to 10 BAR ambient
BFP100-E*-E 100 0M-A 0 to 10 BAR ambient
BFP125-E*-E 125 0M-A 0 to 10 BAR ambient
BFP150-E*-E 150 0M-2 0 to 10 BAR ambient
BFP200-E*-E 200 0M-2 0 to 10 BAR ambient

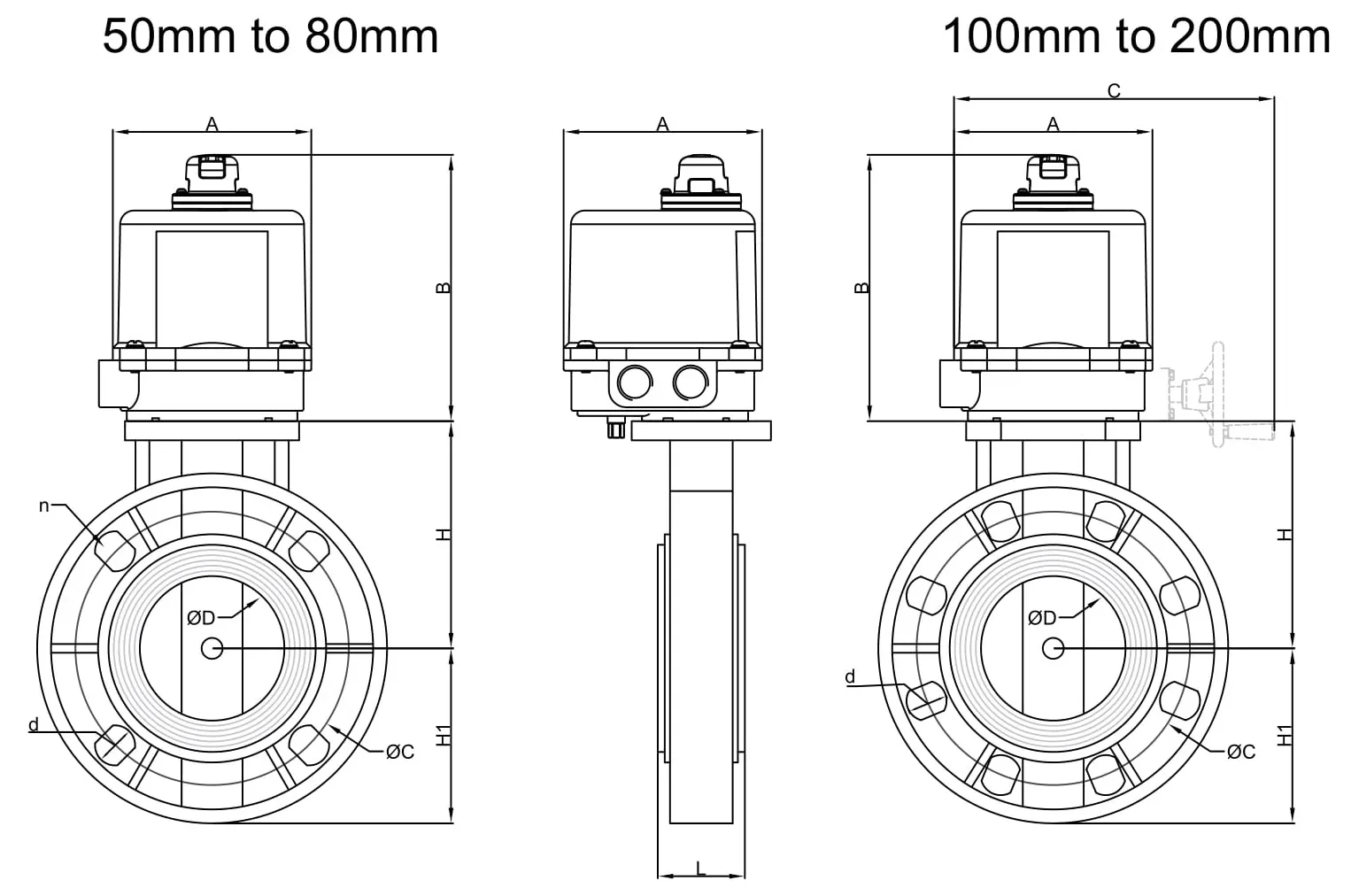

Size Actuator H1 H C L n e D d A B C
50mm 0M-1 79 99 123 45 4 20 54 25 108 155 -
65mm 0M-1 90 108 143 48 4 21 67 27 108 155 -
80mm 0M-1 96 126 157 52 4 21 83 24 108 155 -
100mm 0M-A 110 139 186 57 8 21 101 30 130 200 -
125mm 0M-A 127 169 213 65 8 24 127 28 130 200 -
150mm 0M-2 145 182 240 72 8 24 152 29 200 290 330
200mm 0M-2 172 225 296 90 8 24 200 30 200 290 330

All dimensions are in mm unless shown otherwise

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM or FKM
Disc PVC
Pressure 10 BAR
Actuation Electric

Others Also Bought

BFPE

UPVC Electric Butterfly Valve

Features:

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM or FKM
Disc PVC
Pressure 10 BAR
Actuation Electric

Description:

  • UV Stabalised Electric PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • IP67 Electric Actuator
  • Extra limit switches, manual override & visual indicator
Model Size (mm) Actuator Media Pressure Media Temperature
BFP50-E*-E 50 0M-1 0 to 10 BAR ambient
BFP65-E*-E 65 0M-1 0 to 10 BAR ambient
BFP80-E*-E 80 0M-1 0 to 10 BAR ambient
BFP100-E*-E 100 0M-A 0 to 10 BAR ambient
BFP125-E*-E 125 0M-A 0 to 10 BAR ambient
BFP150-E*-E 150 0M-2 0 to 10 BAR ambient
BFP200-E*-E 200 0M-2 0 to 10 BAR ambient
.

UPVC Electric Butterfly Valve

BFPE

Dimensions:

Size Actuator H1 H C L n e D d A B C
50mm 0M-1 79 99 123 45 4 20 54 25 108 155 -
65mm 0M-1 90 108 143 48 4 21 67 27 108 155 -
80mm 0M-1 96 126 157 52 4 21 83 24 108 155 -
100mm 0M-A 110 139 186 57 8 21 101 30 130 200 -
125mm 0M-A 127 169 213 65 8 24 127 28 130 200 -
150mm 0M-2 145 182 240 72 8 24 152 29 200 290 330
200mm 0M-2 172 225 296 90 8 24 200 30 200 290 330

All dimensions are in mm unless shown otherwise

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
