SKU: BLP3SR

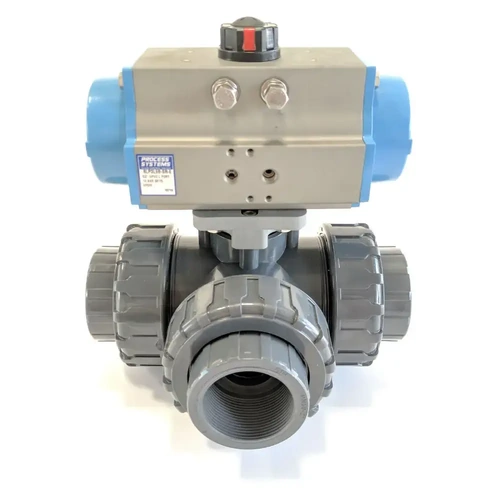

UV Stabalised 3 Way Spring Return PVC Ball Valve

From $291.50

Inc GST
In Stock
Make an Enquiry
  • Three way UV Stabalised Spring Return Pneumatic PVC Ball Valve
  • L or T port configuration
  • Unique Double Oring Stem Seal Design
  • FKM or EPDM seals with a PTFE seat
  • Chem Lock insert with True Union Ends
  • BSP or Solvent Weld (fit sched 40 & 80 pipe) options
  • Anodised Aluminium Actuator, adjustable stops, namur interface & visual indicator
Model Size DN(mm) Actuator Media Pressure Media Temperature Actuator Port Size
BLP3L4B-SR-E 1/2 15 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L5B-SR-E 3/4 20 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L6B-SR-E 1 25 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L7B-SR-E 1 ¼ 32 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L8B-SR-E 1 ½ 40 SR63 -1 to 10 Bar Ambient 1/8"
BLP3L9B-SR-E 2 50 SR63 -1 to 10 Bar Ambient 1/8"

Change the 'B' to an 'S' for solvent weld. Change the 'L" to a 'T' for T port. Change the 'E' to a 'V' for FKM.

L Port T Port

Model Actuator B C D E W L L1 G H J K
BLP3L4B-L-E SR50 55 30 14 23 53 138 83 138 70 90 71
BLP3L5B-L-E SR50 65 38 20 25 69 173 110 138 70 90 71
BLP3L6B-L-E SR50 68 48 25 28 82 200 130 138 70 90 71
BLP3L7B-L-E SR50 68 48 25 32 82 208 130 138 70 90 71
BLP3L8B-L-E SR75 92 65 38 35 117 240 154 208 97 117 94.5
BLP3L9B-L-E SR75 92 65 38 38 117 249 154 208 97 117 94.5

Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Spring Return Pneumatic

BLP3SR

UV Stabalised 3 Way Spring Return PVC Ball Valve

Features:

Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Spring Return Pneumatic

Description:

  • Three way UV Stabalised Spring Return Pneumatic PVC Ball Valve
  • L or T port configuration
  • Unique Double Oring Stem Seal Design
  • FKM or EPDM seals with a PTFE seat
  • Chem Lock insert with True Union Ends
  • BSP or Solvent Weld (fit sched 40 & 80 pipe) options
  • Anodised Aluminium Actuator, adjustable stops, namur interface & visual indicator
Model Size DN(mm) Actuator Media Pressure Media Temperature Actuator Port Size
BLP3L4B-SR-E 1/2 15 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L5B-SR-E 3/4 20 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L6B-SR-E 1 25 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L7B-SR-E 1 ¼ 32 SR50 -1 to 10 Bar Ambient 1/8"
BLP3L8B-SR-E 1 ½ 40 SR63 -1 to 10 Bar Ambient 1/8"
BLP3L9B-SR-E 2 50 SR63 -1 to 10 Bar Ambient 1/8"

Change the 'B' to an 'S' for solvent weld. Change the 'L" to a 'T' for T port. Change the 'E' to a 'V' for FKM.

L Port T Port
.

UV Stabalised 3 Way Spring Return PVC Ball Valve

BLP3SR

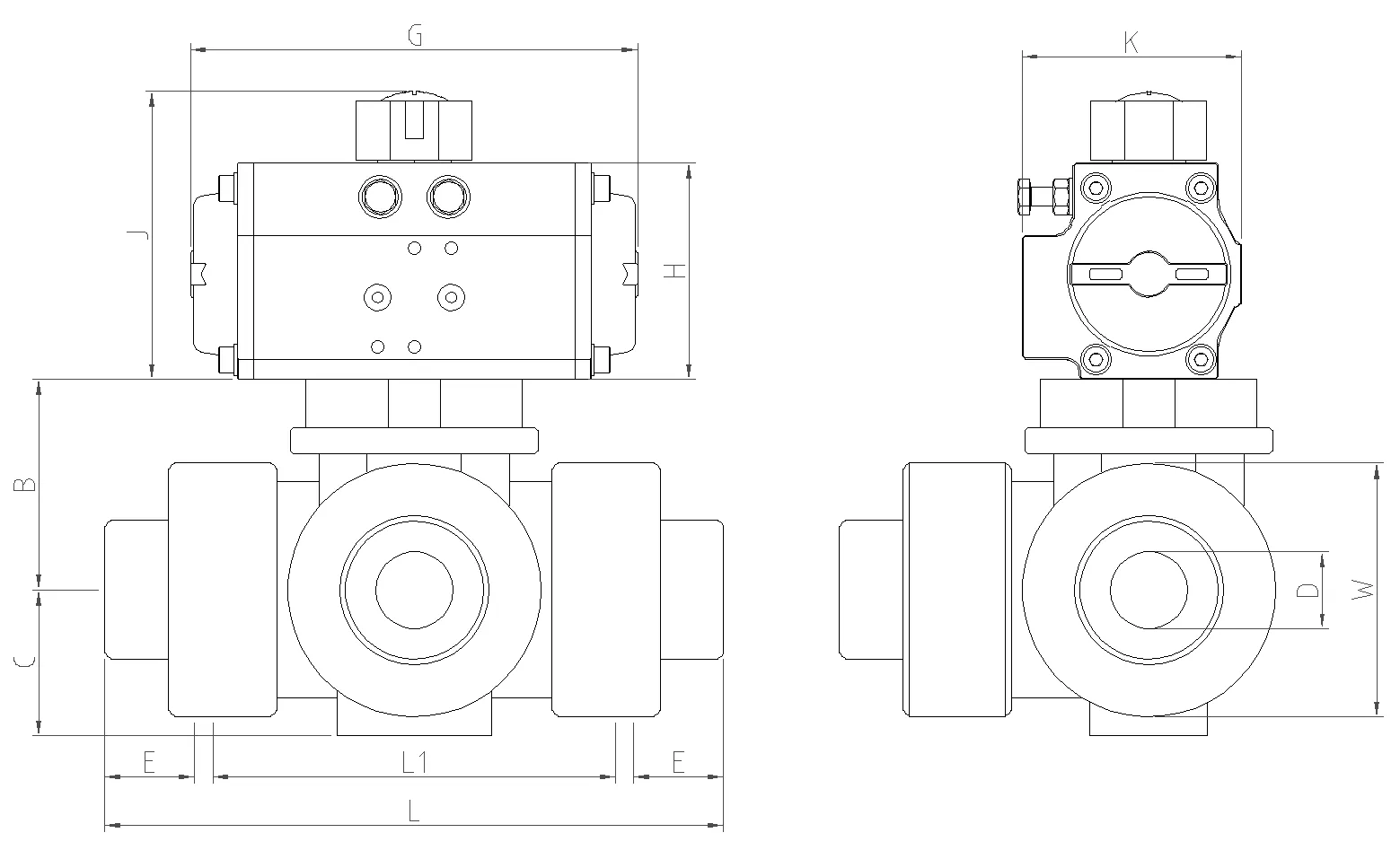

Dimensions:

Model Actuator B C D E W L L1 G H J K
BLP3L4B-L-E SR50 55 30 14 23 53 138 83 138 70 90 71
BLP3L5B-L-E SR50 65 38 20 25 69 173 110 138 70 90 71
BLP3L6B-L-E SR50 68 48 25 28 82 200 130 138 70 90 71
BLP3L7B-L-E SR50 68 48 25 32 82 208 130 138 70 90 71
BLP3L8B-L-E SR75 92 65 38 35 117 240 154 208 97 117 94.5
BLP3L9B-L-E SR75 92 65 38 38 117 249 154 208 97 117 94.5

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
