SKU: BLPDA

UV Stabalised PVC Double Acting Ball Valve

From $187.00

Inc GST
In Stock
Make an Enquiry
  • Two way UV Stabalised Double Acting Pneumatic Ball Valve
  • FKM or EPDM seals with PTFE seats
  • Unique double stem seal design
  • Anodised Aluminium Double Acting Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • BSP of Solvent Weld (fits Sched 40 & 80 pipe) Ends
Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP4B-DA-E 1/2 15 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP5B-DA-E 3/4 20 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP6B-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7B-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8B-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9B-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10B-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11B-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12B-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"

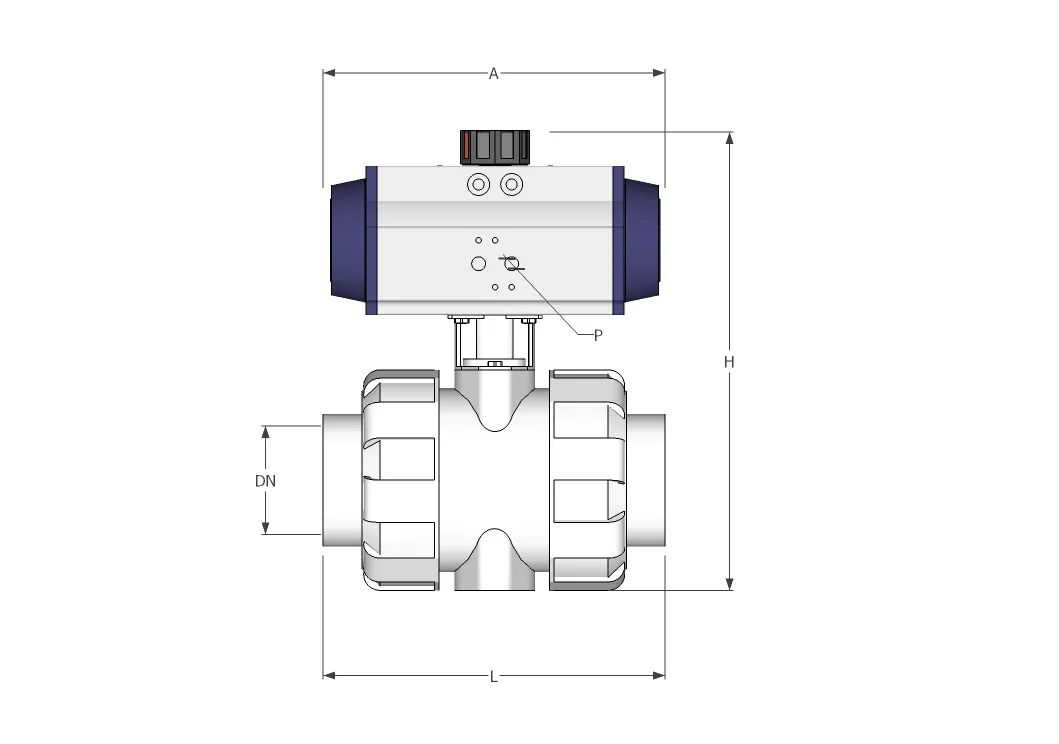

Double Acting PVC Ball Valve

Model DN L H A P
BLP4B-DA-E 15 110 173 138 1/8”
BLP5B-DA-E 20 115 182 138 1/8”
BLP6B-DA-E 25 130 193 138 1/8”
BLP7B-DA-E 32 142 226 162 1/8”
BLP8B-DA-E 40 160 239 162 1/8”
BLP9B-DA-E 50 173 271 162 1/8”
BLP10B-DA-E 65 250 317 208 1/8”
BLP11B-DA-E 80 270 337 208 1/8”
BLP12B-DA-E 100 310 397 208 1/8”

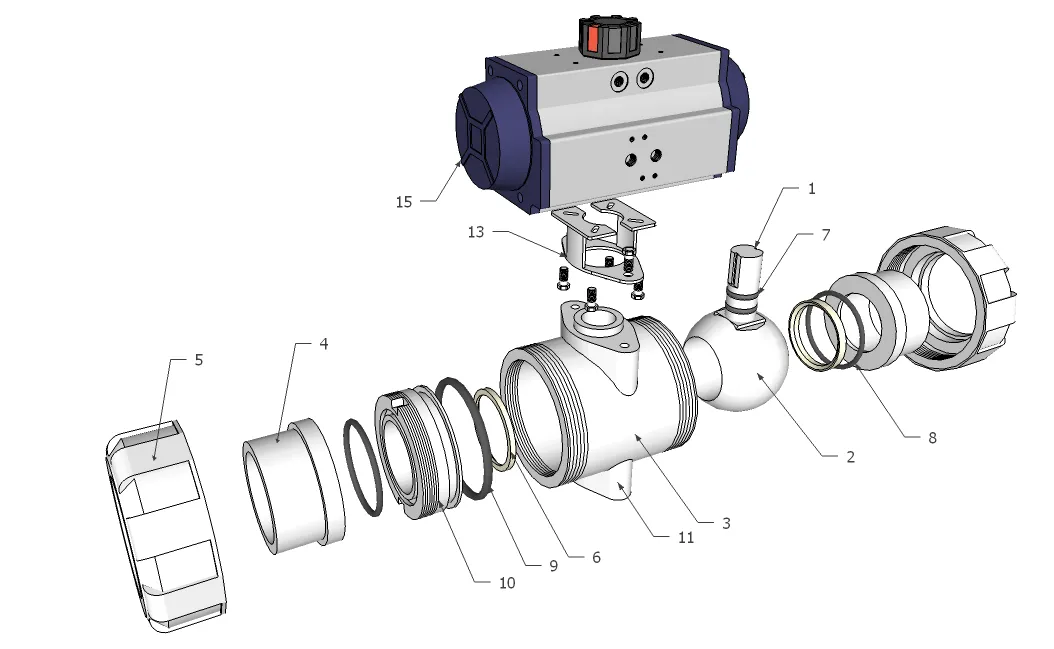

Double Acting PVC Ball Valve

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Double Acting Actuator Anodized Aluminium

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Others Also Bought

BLPDA

UV Stabalised PVC Double Acting Ball Valve

Features:

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Description:

  • Two way UV Stabalised Double Acting Pneumatic Ball Valve
  • FKM or EPDM seals with PTFE seats
  • Unique double stem seal design
  • Anodised Aluminium Double Acting Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • BSP of Solvent Weld (fits Sched 40 & 80 pipe) Ends
Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP4B-DA-E 1/2 15 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP5B-DA-E 3/4 20 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP6B-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7B-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8B-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9B-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10B-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11B-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12B-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"



.

UV Stabalised PVC Double Acting Ball Valve

BLPDA

Dimensions:

Double Acting PVC Ball Valve

Model DN L H A P
BLP4B-DA-E 15 110 173 138 1/8”
BLP5B-DA-E 20 115 182 138 1/8”
BLP6B-DA-E 25 130 193 138 1/8”
BLP7B-DA-E 32 142 226 162 1/8”
BLP8B-DA-E 40 160 239 162 1/8”
BLP9B-DA-E 50 173 271 162 1/8”
BLP10B-DA-E 65 250 317 208 1/8”
BLP11B-DA-E 80 270 337 208 1/8”
BLP12B-DA-E 100 310 397 208 1/8”
.

UV Stabalised PVC Double Acting Ball Valve

BLPDA

Construction:

Double Acting PVC Ball Valve

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Double Acting Actuator Anodized Aluminium
