SKU: BLPE

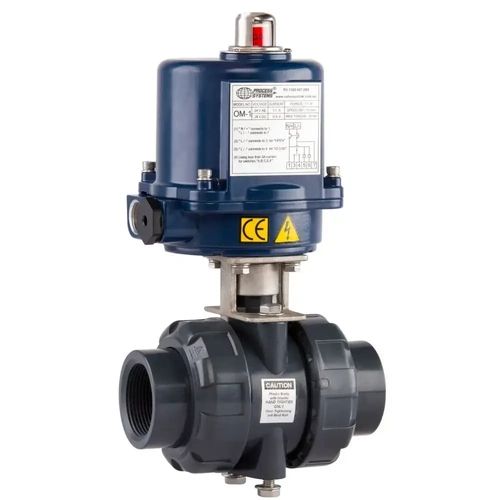

UV Stabalised PVC Electric Ball Valve

From $319.00

Inc GST
In Stock
Make an Enquiry
  • Two way UV Stabalised Electric Ball Valve
  • FKM or EPDM seals with PTFE seats
  • IP67 Electric Actuator
  • Unique double stem seal design
  • Visual Indicator, Extra Limit Switches & Manual Override
  • BSP of Solvent Weld (fits Sched 40 & 80 pipe) Ends
Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4B-E*-E 1/2 15 0M-1 -1 to 10 Bar Ambient
BLP5B-E*-E 3/4 20 0M-1 -1 to 10 Bar Ambient
BLP6B-E*-E 1 25 0M-1 -1 to 10 Bar Ambient
BLP7B-E*-E 1 ¼ 32 0M-1 -1 to 10 Bar Ambient
BLP8B-E*-E 1 ½ 40 0M-1 -1 to 10 Bar Ambient
BLP9B-E*-E 2 50 0M-1 -1 to 10 Bar Ambient
BLP10B-E*-E 2 ½ 65 0M-A -1 to 10 Bar Ambient
BLP11B-E*-E 3 80 0M-A -1 to 10 Bar Ambient
BLP12B-E*-E 4 100 0M-A -1 to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.

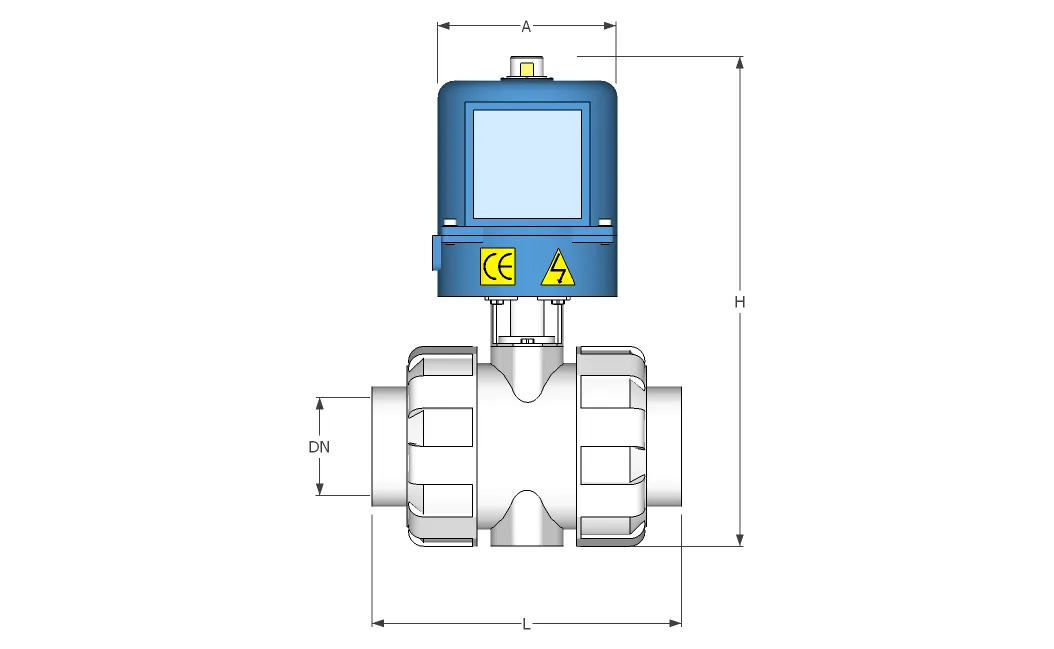

Electrically Actuated PVC Ball Valve

Model DN L H A
BLP4B-E*-E 15 110 238 108
BLP5B-E*-E 20 115 247 108
BLP6B-E*-E 25 130 258 108
BLP7B-E*-E 32 142 280 108
BLP8B-E*-E 40 160 293 108
BLP9B-E*-E 50 173 325 108
BLP10B-E*-E 65 250 400 108
BLP11B-E*-E 80 270 420 108
BLP12B-E*-E 100 310 480 108

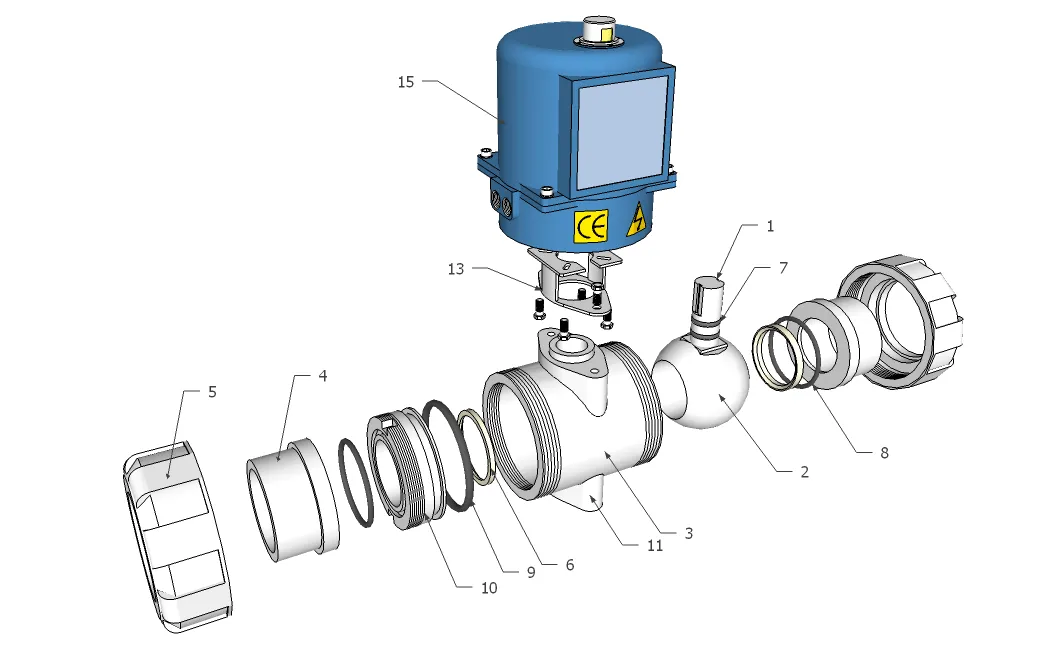

Electrically Actuated PVC Ball Valve

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Electric Actuator Powder Coated Aluminium

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Others Also Bought

BLPE

UV Stabalised PVC Electric Ball Valve

Features:

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Description:

  • Two way UV Stabalised Electric Ball Valve
  • FKM or EPDM seals with PTFE seats
  • IP67 Electric Actuator
  • Unique double stem seal design
  • Visual Indicator, Extra Limit Switches & Manual Override
  • BSP of Solvent Weld (fits Sched 40 & 80 pipe) Ends
Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4B-E*-E 1/2 15 0M-1 -1 to 10 Bar Ambient
BLP5B-E*-E 3/4 20 0M-1 -1 to 10 Bar Ambient
BLP6B-E*-E 1 25 0M-1 -1 to 10 Bar Ambient
BLP7B-E*-E 1 ¼ 32 0M-1 -1 to 10 Bar Ambient
BLP8B-E*-E 1 ½ 40 0M-1 -1 to 10 Bar Ambient
BLP9B-E*-E 2 50 0M-1 -1 to 10 Bar Ambient
BLP10B-E*-E 2 ½ 65 0M-A -1 to 10 Bar Ambient
BLP11B-E*-E 3 80 0M-A -1 to 10 Bar Ambient
BLP12B-E*-E 4 100 0M-A -1 to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.

.

UV Stabalised PVC Electric Ball Valve

BLPE

Dimensions:

Electrically Actuated PVC Ball Valve

Model DN L H A
BLP4B-E*-E 15 110 238 108
BLP5B-E*-E 20 115 247 108
BLP6B-E*-E 25 130 258 108
BLP7B-E*-E 32 142 280 108
BLP8B-E*-E 40 160 293 108
BLP9B-E*-E 50 173 325 108
BLP10B-E*-E 65 250 400 108
BLP11B-E*-E 80 270 420 108
BLP12B-E*-E 100 310 480 108
.

UV Stabalised PVC Electric Ball Valve

BLPE

Construction:

Electrically Actuated PVC Ball Valve

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Electric Actuator Powder Coated Aluminium
