SKU: BLPSR

UV Stabalised PVC Spring Return Ball Valve

From $220.00

Inc GST
In Stock
Make an Enquiry
  • Two way UV Stabalised Spring Return Pneumatic Ball Valve
  • FKM or EPDM seals with PTFE seats
  • Unique double stem seal design
  • Anodised Aluminium Spring Return Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • BSP of Solvent Weld (fits Sched 40 & 80 pipe) Ends
Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP54B-SR-E 1/2 15 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP55B-SR-E 3/4 20 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP56B-SR-E 1 25 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP57B-SR-E 1 ¼ 32 SR63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP58B-SR-E 1 ½ 40 SR63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP59B-SR-E 2 50 SR75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP510B-SR-E 2 ½ 65 SR75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP511B-SR-E 3 80 SR88 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP512B-SR-E 4 100 SR88 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

Spring Return PVC Ball Valve

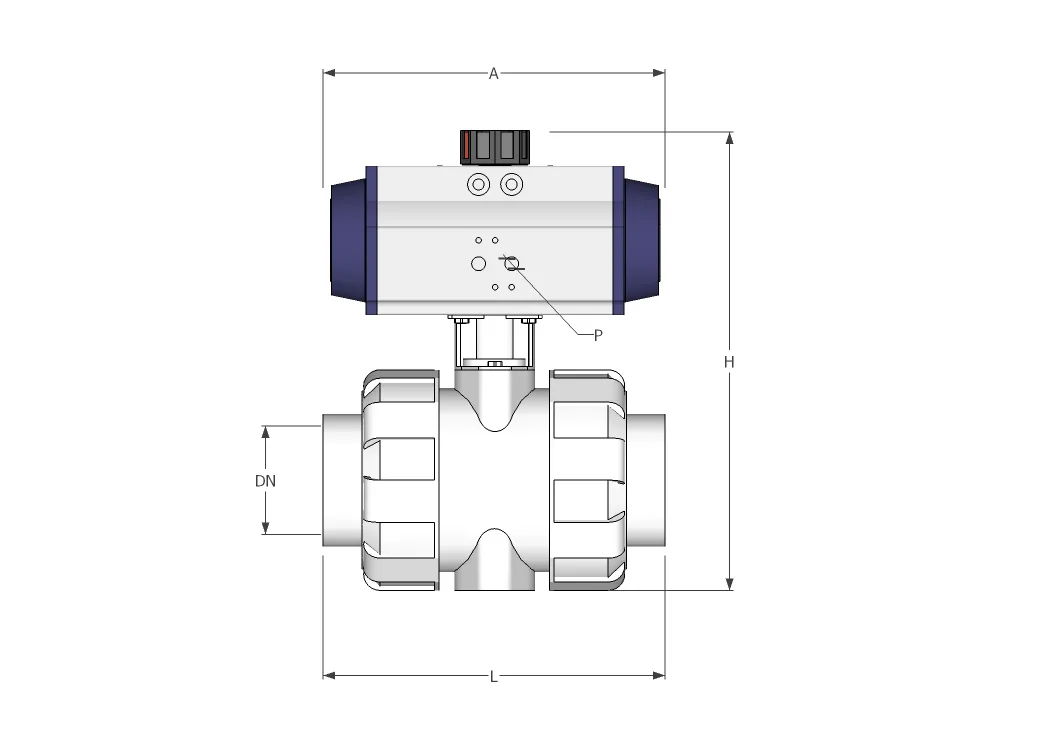

Model DN L H A P
BLP54B-SR-E 15 110 173 138 1/8”
BLP55B-SR-E 20 115 182 138 1/8”
BLP56B-SR-E 25 130 193 138 1/8”
BLP57B-SR-E 32 142 226 162 1/8”
BLP58B-SR-E 40 160 239 162 1/8”
BLP59B-SR-E 50 173 287 208 1/8”
BLP510B-SR-E 65 250 317 208 1/8”
BLP511B-SR-E 80 270 356 245 1/8”
BLP512B-SR-E 100 310 416 245 1/8”

All dimension in mm unless shown otherwise.

Spring Return PVC Ball Valve

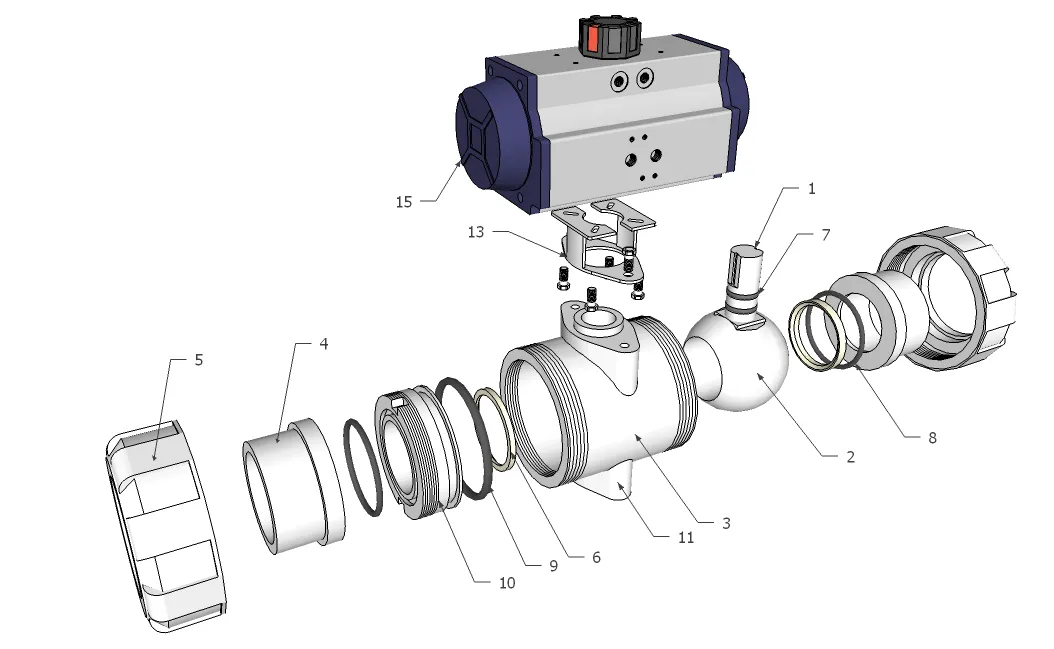

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Double Acting Actuator Anodized Aluminium

Size 1/2" to 4" BSP
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Spring Return Pneumatic

.
.
