SKU: VSM

Brass Vacuum Switch

From $198.00

Inc GST
In Stock
Make an Enquiry

Adjustable vacuum switch which are single pole double throw meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parrallel thread with an oring gasket. 30% Full Scale Hysterisis. Typical uses include: pneumatic, hydraulic, lubrication and general industry.

Model Adjustment Range (mBAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (mBAR) Weight (grams)
VSM1R14 -100 to -500 20 Brass NBR No ±50 100
VSM2R14 -500 to -900 20 Brass NBR No ±80 100

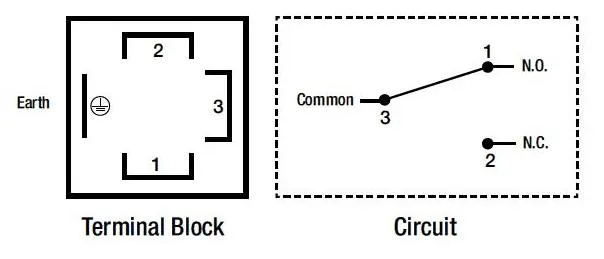

Vacuum Switch Wiring

Vacuum Switch Dimensions

Switching Range -100 to -900 milli BAR
Body Brass
Function Single Pole Double Throw (SPDT)
Voltage Multi Voltage (0 to 240v AC/DC)
Current 6 amp resistive and 2 amp inductive
Factory Accredited CE, ISO 9001, TUV

VSM

Brass Vacuum Switch

Features:

Switching Range -100 to -900 milli BAR
Body Brass
Function Single Pole Double Throw (SPDT)
Voltage Multi Voltage (0 to 240v AC/DC)
Current 6 amp resistive and 2 amp inductive
Factory Accredited CE, ISO 9001, TUV

Description:

Adjustable vacuum switch which are single pole double throw meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parrallel thread with an oring gasket. 30% Full Scale Hysterisis. Typical uses include: pneumatic, hydraulic, lubrication and general industry.

Model Adjustment Range (mBAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (mBAR) Weight (grams)
VSM1R14 -100 to -500 20 Brass NBR No ±50 100
VSM2R14 -500 to -900 20 Brass NBR No ±80 100

Vacuum Switch Wiring

.

Brass Vacuum Switch

VSM

Dimensions:

Vacuum Switch Dimensions

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
