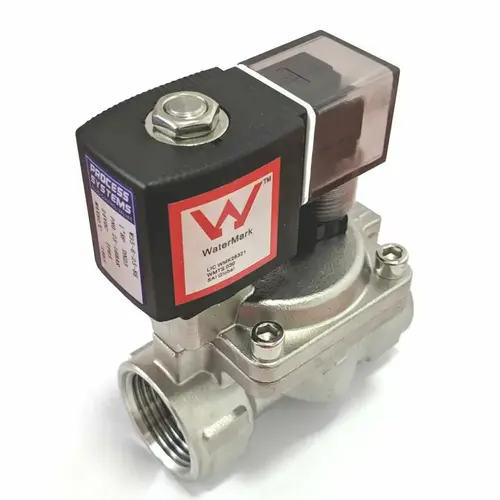

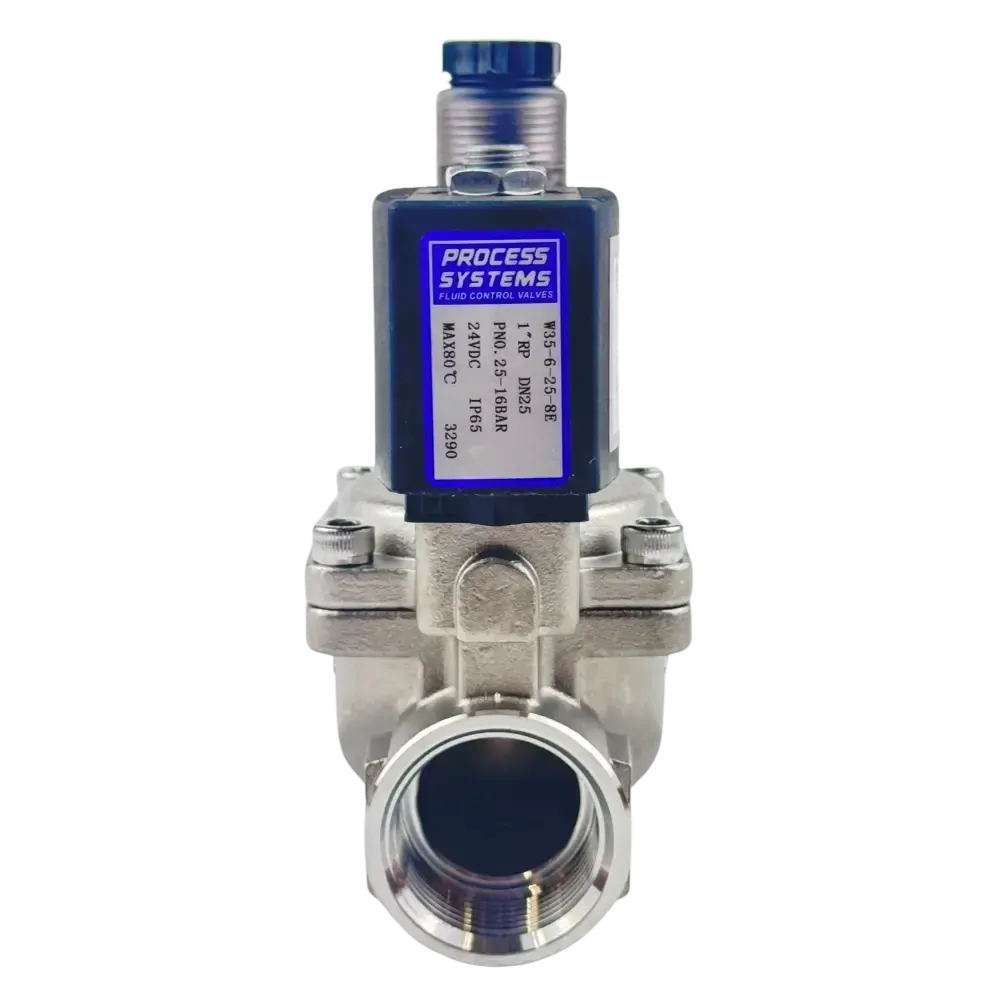

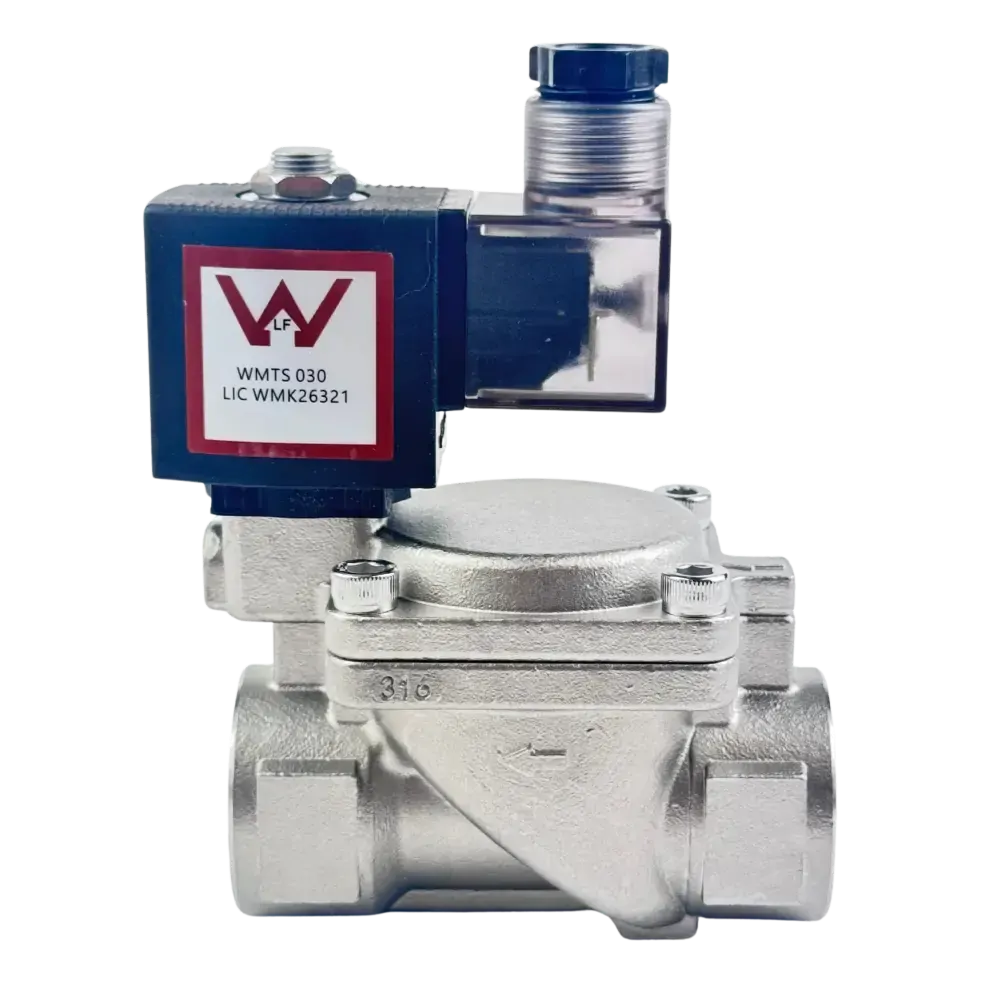

Features:
Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat EPDM
Pressure Range 0.25 to 16 BAR
Media Potable Water

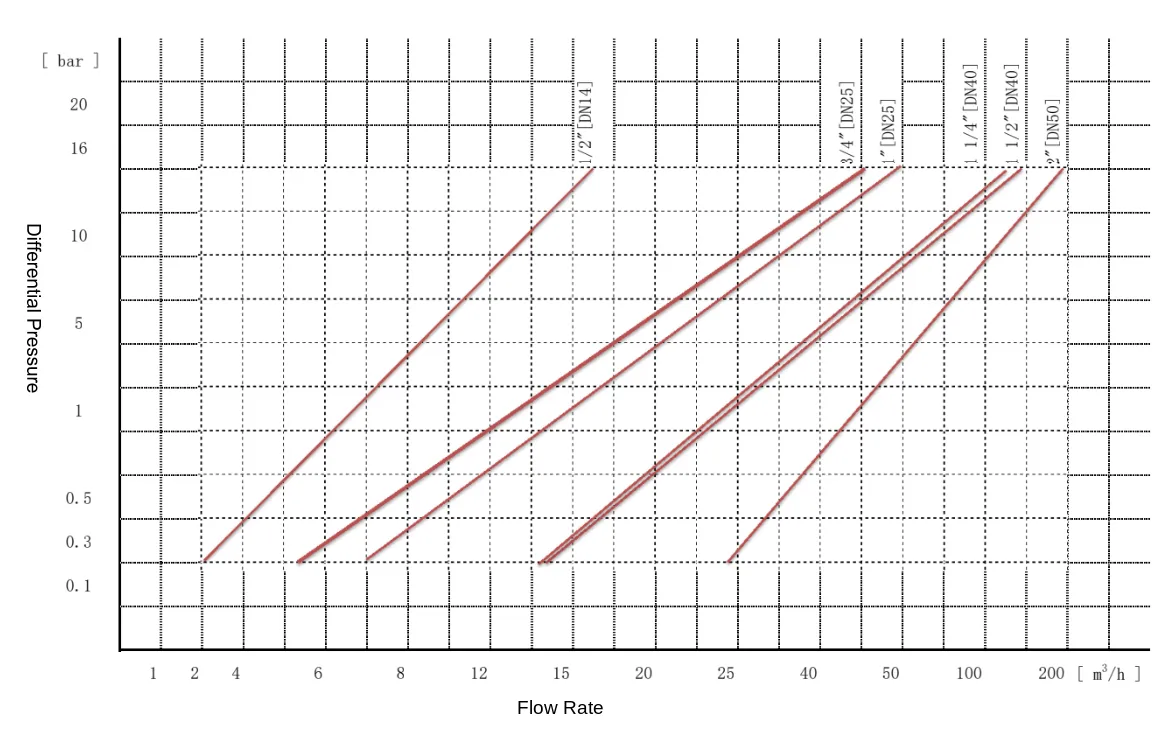

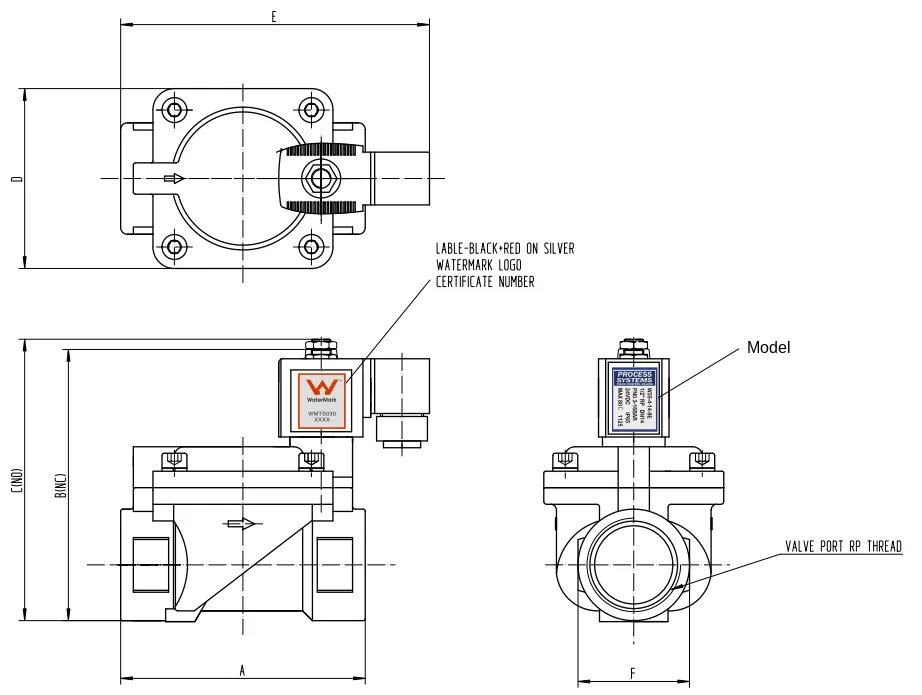

Moddel | Port Size (Rp) | Orrifice | A | B | D | E | F |
---|---|---|---|---|---|---|---|
W35-4-14-*E | 1/2" | 14 | 65 | 102.5 | 40 | 104 | 27 |
W35-5-20-*E | 3/4" | 20 | 92 | 120 | 60 | 129 | 40 |
W35-6-25-*E | 1" | 25 | 92 | 120 | 60 | 129 | 40 |
W35-7-40-*E | 1 ¼" | 40 | 125 | 142.5 | 92 | 158 | 57 |
W35-8-40-*E | 1 ½" | 40 | 125 | 142.5 | 92 | 158 | 57 |
W35-9-50-*E | 2" | 50 | 150 | 160 | 108.5 | 179 | 70 |
All dimensions in mm unless shown otherwise.

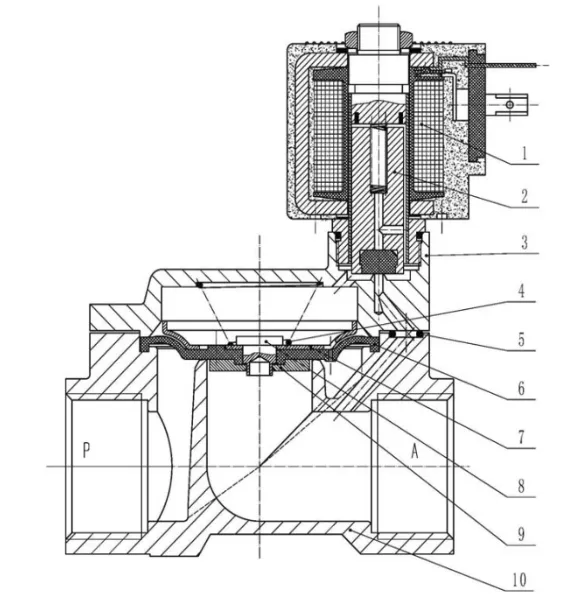

Number | Item | Material |
---|---|---|
1 | Coil | Epoxy |
2 | Armature | Martensitic stainless steel |
3 | Valve Cover | 316 Stainless Steel |
4 | Spring | 304 Stainless STeel |
5 | 0-Ring | EPDM |
6 | Diaphragm | EPDM |
7,8,9 | Diaphragm Support | Stainless Steel |
10 | Valve Body | 316 Stainless Steel |
